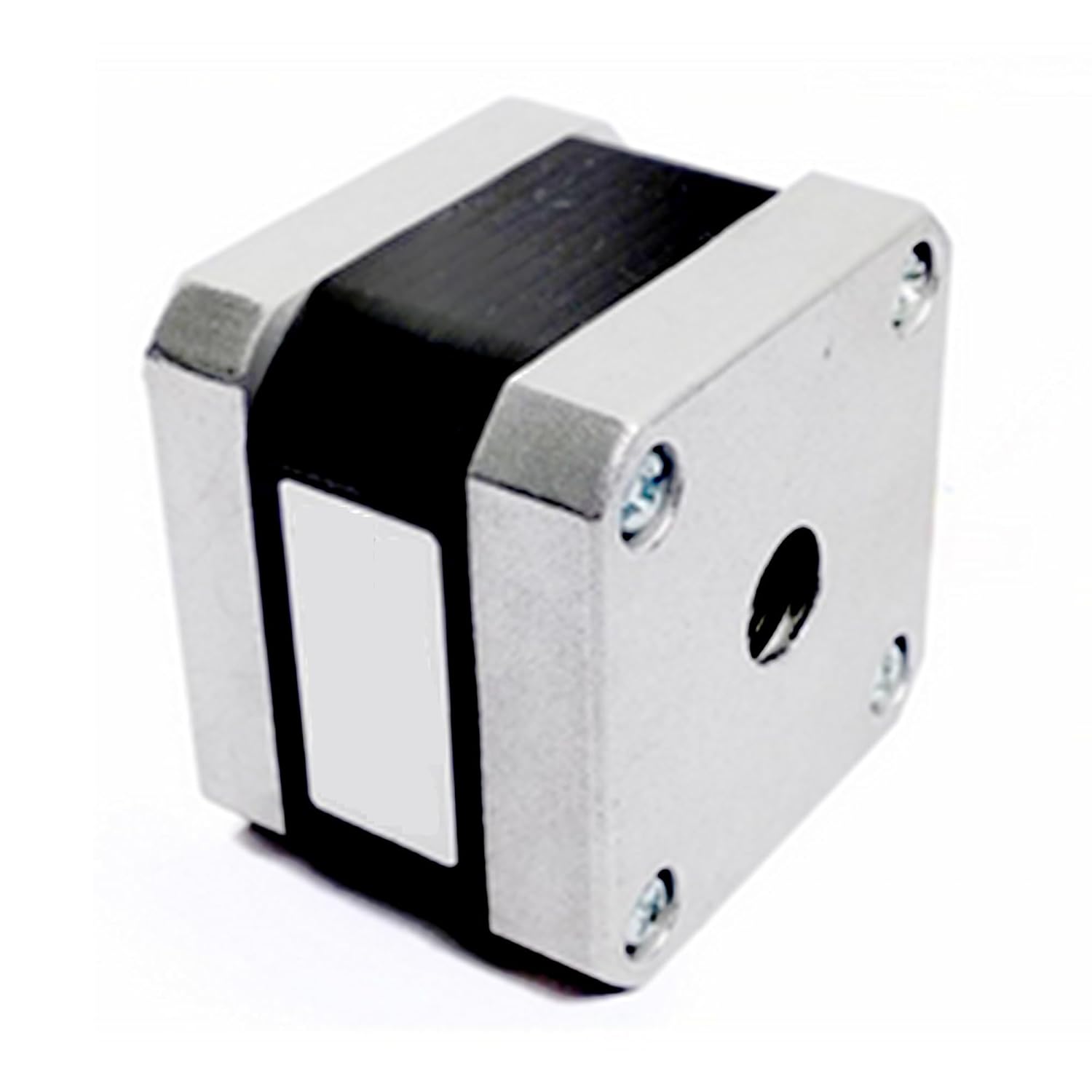

ATO Nema 23 Stepper Motor 1A 0.9N.m Smooth Rotation Easy to Install 6 Wires 1.8 Degree Bipolar Dtepper Motor for 3D Printers, CNC Machines, Robot Arms...with Matched Drive

Step Angle 1.8° Holding Torque 0.9Nm Rated Current/phase 1A Phase Resistance 7.4Ω Inductance 10mH Rotor Inertia 280g-cm2 Physical Specification Frame Size 57 x 57mm Length 56mm Shaft Diameter Φ6.35mm Shaft Length 19mm Motor Leads 6 Weight 0.68kg Technical Parameters Step Angle Accuracy ±5% (full step, no load) Resistance Accuracy ±10% Inductance Accuracy ±20% Temperature Rise 80℃ Max. (rated current, 2 phase on) Ambient Temperature -20℃~+50℃ Insulation Resistance 100MΩ Min. 500VDC Dielectric Strength 500V AC for one minute Shaft Radial Play 0.02Max. 450g Shaft Axial Play 0.08Max. 450g Quality Assurance Warranty Period 12 months Certificate CE, ROHs, ISO/SGS9001

• *Enhanced Torque Performance*: Experience the robust holding torque of 0.9 N·m with our NEMA 23 stepper motor, ensuring optimal performance across CNC machines, 3D printers, and robotic arms.
• *Precise Control*: Achieve meticulous positioning and speed control with a 1.8° step angle and a rated current of 1A, making this bipolar stepper motor ideal for applications demanding exactitude.
• *Compact, Versatile Design*: Its small footprint and straightforward structure facilitate seamless integration into various projects, including electronic and textile equipment, offering adaptability in restricted spaces.
• *Silent, Seamless Operation*: Revel in uniform speed, consistent rotation, and minimal noise, ensuring a seamless performance devoid of step loss or jamming. Perfect for applications prioritizing reliability and minimal disruption.
• *Customer-Centric Approach*: Should you have any queries or concerns regarding size compatibility or service, please don't hesitate to reach out. We're here to provide assistance and support.
