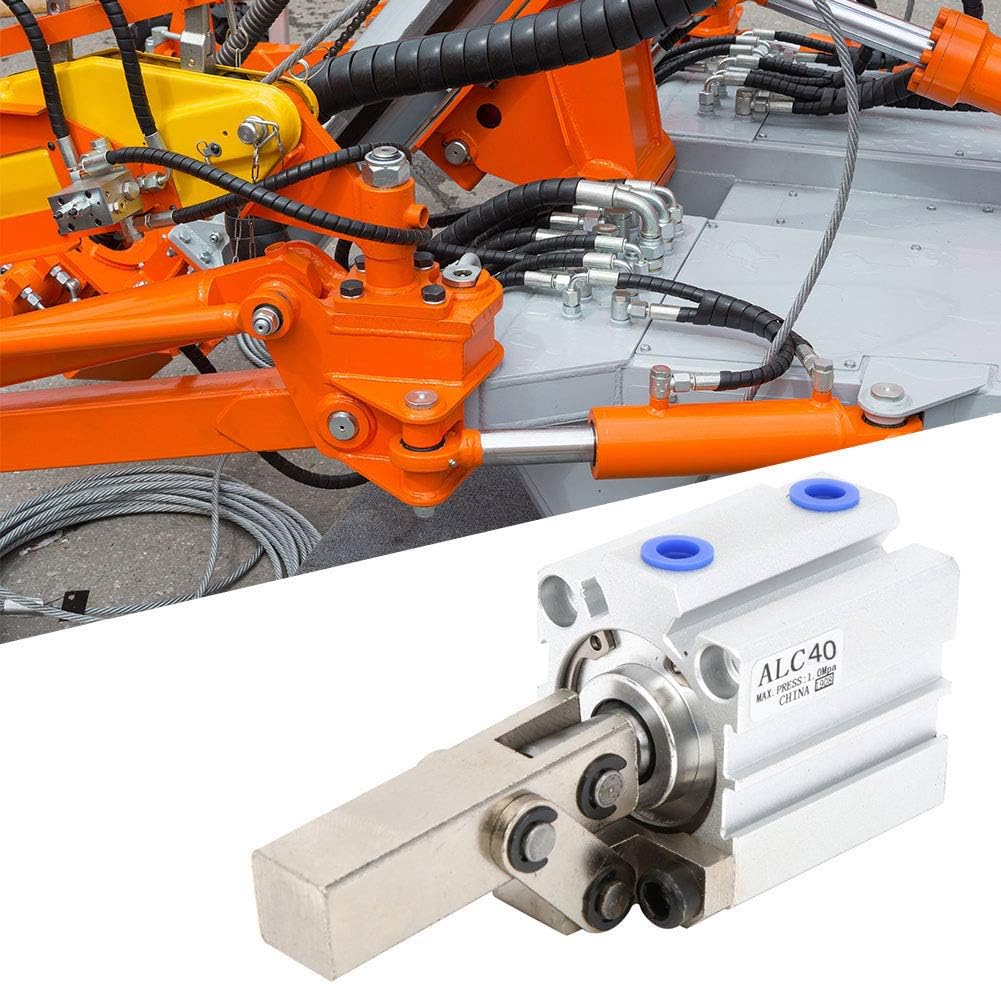

Walfront ALC40 Double Acting Non-Magnetic Pneumatic Cylinder with Clamp Arm Lever

Specification: Item Type: Air Cylinder Optional Model: ALC25, ALC32, ALC40, ALC50 Bore Diameter x Inlet Hole Thread x Stroke(mm) x Holding Force(Kgf) x Clamp Arm Opening Angle 25 x M5×0.8 x 20 x 15 x 15 x 82° 32 x 1/8 x 20 x 25 x 73° 40 x 1/8 x 25 x 45 x 62° 50 x 1/4 x 30 x 70 x 80° Action Form: Double Action Type Use Fluid: Compressed Air Operating Pressure Range MPa (kgf/cm²): 0.15-1.0 (1.5~10.2) Environment and Fluid Temperature: -10~70 (less than icing) Lubricating Oil: No need Buffer: None Travel Tolerance (mm): b + 1.4 Connection Pipe Diameter: M5x0.8, 1/8in, 1/4in Package List: 1 x Air Cylinder

• Multipurpose and versatile: Widely applied to the automatic equipment in light industry, textile industry, electronic and machinery industry.
• Strong impact resistance: This air cylinder is made of aluminum, high strength, no distortion, long service life. Thicker base, the air cylinder has strong impact resistance, more stable when working, more when operating.
• Package list: 1 x Air cylinder; Connection pipe diameter: M5x0.8, 1/8in, 1/4in; Operating pressure range MPa (kgf/cm²): 0.15-1.0 (1.5~10.2); Environment and fluid temperature: -10~70 (less than icing); Travel tolerance (mm): b + 1.4.
• Optional model: ALC25, ALC32, ALC40, ALC50: Bore diameter x Inlet hole thread x Stroke(mm) x Holding force(Kgf) x Clamp arm opening angle: 25 x M5×0.8 x 20 x 15 x 15 x 82° / 32 x 1/8 x 20 x 25 x 73° / 40 x 1/8 x 25 x 45 x 62° / 50 x 1/4 x 30 x 70 x 80°.
• Invincible performance: Excellent sealing ring, the air cylinder is of high efficiency to prevent piston leakage, improving sealing performance; With self-lubricating bearing, the piston rod is lubrication .
